GST 700 bow handle jig saw

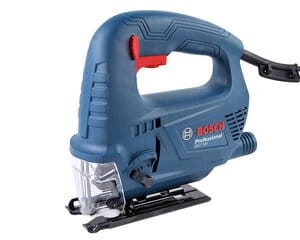

The GST 700 is a bow handle jig saw manufactured by Bosch.

The machine is powered by a 500 watt brushed electric motor from a power outlet.

The machine can be activated with the trigger switch on the bottom side of the handle. There is also a red lock button that will keep the trigger pressed without a finger on it.

On the trigger switch is a dial for setting the strokes per minute between 1450 and 3100.

On the right side there is also a switch with up to three orbital actions for faster cutting in wood.

The saw blade can be changed without needing any tools the chuck has to be pushed upwards while the saw blade is pulled downwards to remove it.

The saw is fitted with a clear plastic dust cover to aid in dust extraction when a vacuum is attached. The cover has to be removed to replace the saw blade.

For dust extraction a vacuum adapter is built into the housing allowing a vacuum to be attached directly to the back side.

On power cord there is a plastic holder for a hex key. The hex key can be used tilt the base up to 45º.

Included accessories

• Hex key
