GST 80 PB bow handle jig saw

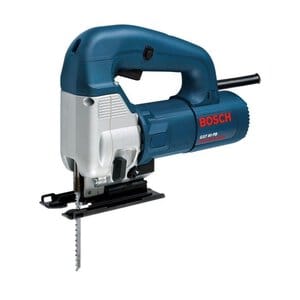

The GST 80 PB is a bow handle jig saw manufactured by Bosch.

The machine is powered by a 580 watt brushed electric motor from a power outlet.

The machine can be activated with the trigger switch on the bottom side of the handle. There is also a red lock button that will keep the trigger pressed without a finger on it.

On the right side there is a selector switch for up to three orbital actions for faster cutting in wood and a switch to turn on the blower function to clear saw dust away from around the saw blade.

To change the blade a long screw driver is needed and has to be inserted from the top.

On the bottom there is a hex nut which has to be loosened to tilt the base up to 45º.

This machine has a distinctive aluminium front and cylindrical motor housing. On the right side there is also a non functional bulge which seems to be there because the same mold is used as for the GST 80 PE barrel grip jig saw which has its power switch on that place.

Variants

• GST 80 PBE with variable speed control.
• GST 80 PE with barrel grip handle.
