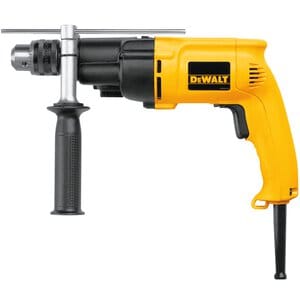

DW505 corded hammer drill
The DW505 is a corded electric hammer drill manufactured by DeWalt.
The machine has a yellow plastic body with a black front.
The machine is activated with a black variable speed trigger switch. Integrated on top of the the trigger is a switch to reverse the rotation.
The machine has two gears: low with high torque, or high for faster drilling. The hammer mode can be deactivated for drilling in wood and metal.
A rotatable side handle with depth gauge is included.
The chuck is keyed and the machine does not have an adjustable clutch.
Included accessories
- Side handle
- Debth gauge
- Chuck key with holder
Variants
- DWD505K with carrying case
