0850-20 M12 handheld vacuum

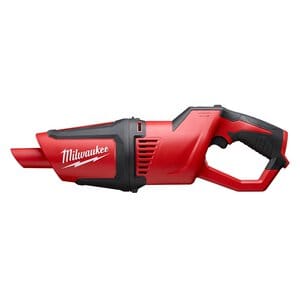

The 0850-20 is a 12 volt cordless handheld vacuum cleaner manufactured by Milwaukee

The tool has brushed electric motor powered by a M12 battery.

It is the only handheld vacuum for the M12 battery system. The only other vacuum is the 0960-20 but it cannot be held with one hand.

Exterior

The machine had a plastic red body with an integrated D-shape handle behind it. All the way on the bottom of the handle is an integrates "nail hook" to hang the machine on a wall on a small hook or nail.

An M12 battery is inserted in the back of the handle. On the underside of the handle is a black trigger switch and a lock on switch above it.

In front of the lock on switch is a row of four red LEDs that act as a battery charge indicator. Milwaukee calls this the "fuel gauge".

The front part of the machine is a detachable dust collection box with a transparent window on top.

On the font there is a angled round opening with a a diameter of 1 1/4" (32 mm) on which different nozzles and brushes can be attached for specific cleaning jobs.

Operation

The machine is activated by a black trigger switch on the underside of the handle. Above it, on the top side of the handle is a lock on switch to keep the machine running without having to hold the trigger down.

The dust collection box can be removed by pressing a button on top and twisting the front part and pulling it forward. The filter remains attached to the body and can also be twisted to be removed for cleaning.

Included accessories
