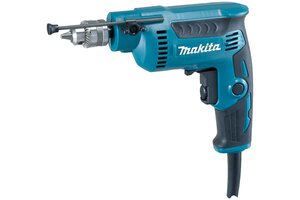

DP2010 high speed drill

The DP2010 is a single speed electric drill manufactured by Makita. The machine is powered by 370 watt brushed motor from an outlet.

With a chuck diameter of only 6.5 mm and a maximum RPM of 4200 this "high speed" drill is particularly suitable for quickly drilling small holes in hard materials like metal.

The machine has a plastic body in the typical Makita teal color. The back of the body and handle covered in a black elastomer material for better grip.

On the front of the handle there is a large black plastic variable speed trigger switch to activate the machine. A speed control dial to set the maximum RPM is integrated in the trigger switch.

Above the trigger switch is a stwitch to reverse the turning direction. Behind it is a round lock on button to keep the machine turning without needing to hold the trigger.

On the front of the machine is a depth rod which can be adjusted by loosening the knob where it is attached to the body.

The machine does not have a built in clutch.
