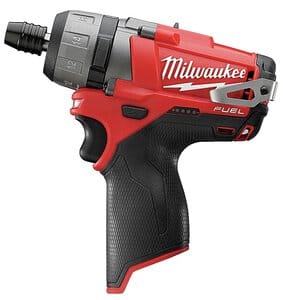

2402-20 M12 screwdriver
The 2402-20 is a cordless electric screw driver manufactured by Milwaukee. It is part of their high performance FUEL product line.
The machine shares the same user manual with the 2403-20 drill and 2404-20 hammer drill. The tools have the same motor and grip but have a chuck instead of a hex bit holder. The hammer drill has an additional hammering mode.
Exterior
The machine has a plastic red body with black rubberized around the handle and back side.
The handle is placed in the middle of the body for better balance. An M12 battery is inserted in the bottom of the handle. This makes the machine more compact than similar tools where the battery is placed under the handle but also makes the handle wider.
On top of the handle is a black trigger switch with an LED light above it that illuminates the working area. Behind it is a push button to reverse the direction of rotation on each side.
Behind it are four LEDs on the left side that act as a battery charge indicator. Milwaukee calls this the "fuel gauge".
The motor housing has some ventilation slits and a metal belt clip that can be placed on either side.
On top of the body is a gear selector slide switch.
At the front there is a large gray clutch adjustment ring with 18 settings. Behind it is a gray ring to select the work mode, one can choose drill or screw here. When drilling is selected the clutch is disabled.
At the front is a black bit holder for 1/4" hex bits.
Operation
The machine is activated by pulling the black variable speed trigger switch. The turning direction can be reversed with the button behind it.
The gear selector on top can switch between low (400 RPM) and high (1700 RPM) gear.
The clutch can be adjusted with the clutch adjustment ring and disabled completely by selecting with the drill setting in the ring behind it.
Bits can be removed by pulling the collar of the bit holder forward. It will stay in place and bits can be inserted by pushing them in until the collar snaps back in place to secure it the bit.
