PABS 20-Li A1 cordless drill

PABS-20-LI-B2The PABS 20-Li A1 is a cordless drill distributed under the Parkside brand.

The machine has a brushed electric motor that is powered by a X20V battery. Although the product picture does not show any markings on the battery the user manual mentions it is compatible with X20V batteries.

The weight of the machine was not found online or in the user manual. There is also no high resolution image available.

Availability

In 2021 the machine was listed on the German distributor's website but had no price information. It was not found in any of the online Lidl shops. For that reason it is marked as discontinued here.

Exterior

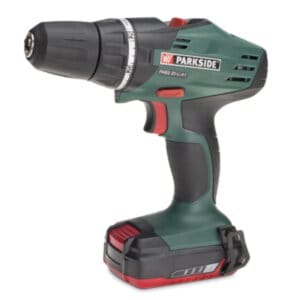

The machine has a sleek curved dark green plastic housing with black rubberized parts around the handle and back.

On the bottom of the handle a X20V battery attaches by sliding in from the front. A black metal belt clip can be attached on the left side. On the right side there is an integrated bit holder.

On front of the handle is a red trigger switch with a black rubberized front. Above it is a push button to reverse the direction of rotation on each side.

On top of the housing is a red gear selector switch.

At the front is clutch setting ring with 25 settings plus a drill setting that disables the clutch. At the front is a black plastic chuck with a maximum opening of 13 mm.

Just below the clutch adjustment ring is a white LED that illuminates the working area.

Operation

The machine works as a standard drill. It is activated by pressing the variable speed trigger switch. The push button above it can be used to reverse the turning direction or as a trigger lock when the button is centered.

The resistance of the clutch is adjusted with the ring behind the chuck.

The gear can be selected with the sliding switch on top of the body while it is not turning.
