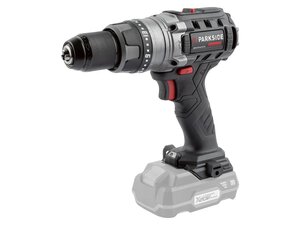

PSBSAP 20-Li B2 hammer drill
The PSBSAP 20-Li B2 is a cordless hammer drill distributed under the Parkside brand.
The addition P to the PSBSA model name indicates that it is part of the Parkside performance label. This means that the machine is equipped with an efficient brushless electric motor and instead of a green body had a black body.
The machine is powered by a X20V battery.
The machine was also not listed on the website of the German distributor Kompernaß. All information was gathered from online Lidl shop pages.
Availability
In March 2022 was listed as available on the website Lidl.de for a price of 69.00 euro without battery or charger.
Exterior
The machine has black plastic housing with black rubberized parts and gray and red accents.
On the bottom of the handle a X20V battery attaches by sliding in from the front. A black metal belt clip can be attached on the left or right side. Above the battery is a white LED that illuminates the working area.
On front of the handle is a red trigger switch with a black rubberized front. Above it is a red push button to reverse the direction of rotation on each side.
On top of the housing is a red gear selector switch. At the front is gray gearbox that is attached to the motor housing with four forward facing screws. On the left side of the gearbox is hammer icon.
At the front is red clutch setting ring with 21 settings plus a drill and hammer plus drill setting that disable the clutch. At the front is a black metal chuck with a maximum opening of 13 mm.
A rotatable auxiliary handle with depth gauge is included and can be secured around the collar behind the clutch setting ring.
Operation
The machine works as a standard drill. It is activated by pressing the variable speed trigger switch. The push button above it can be used to reverse the turning direction or as a trigger lock when the button is centered.
The resistance of the clutch is adjusted with the ring behind the chuck. The drill or hammer mode can be selected by turning the ring further so that the indicator triangle is aligned with the drill or hammer symbol.
The gear can be selected with the sliding switch on top of the body while it is not turning.
Variants
- PABSP 20-Li B2 - without hammer mode
