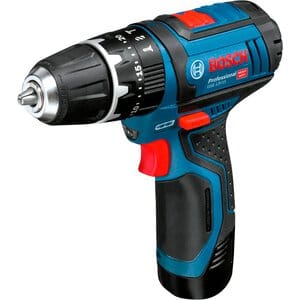

GSB 12V-15 hammer drill
The GSB 12V-15 is a cordless drill manufactured by Bosch as part of the Bosch Professional product line.
The machine has a brushed electric motor that is powered by a 12V Max battery.
The GSB12V-15 is slightly less powerful than the newer GSB 12V-35 which uses a brushless motor.
Availability
This product was previously available under the name GSB 10.8V-2-LI but was renamed in 2017 to its current name.
In North America this drill has the model name PS130 or PS130N for the bare tool.
Exterior
The machine has a dark blue plastic housing with black rubberized parts mainly on the handle and back of the motor housing. The buttons and are red, like the Bosch logo on the side of the motor housing.
A 12V max battery is inserted in the bottom of the handle. At the front of the handle is a red trigger switch with a battery charge indicator consisting out of three green LEDs. In front of it is a white LED that illuminates the working area. Behind it is a rotation reverse switch on both sides.
The motor housing has two vertical ventilation slits near the back.
In front of the motor housing is a work mode ring that has symbols for screw, drill and hammer. In front of that is a gray and black clutch adjustment ring and a keyless black plastic chuck with a steel front tip.
Operation
The machine is activated by pulling the red variable speed trigger switch. The turning direction can be reversed with the push switches on the side. The trigger is locked when the push switch is positioned between forward and reverse.
On top of the motor housing is a red slide switch to toggle between the low (1) and high (2) gears.
The work mode can be selected by turning the black ring so that the symbol lines up with the indicator. There is a hammer mode for drilling in masonry, a drill mode for drilling in other materials like metal and wood. The screwing mode will activate the clutch when too much resistance is encountered.
When screwing mode is selected the clutch can be adjusted in 20 steps by turning the ring behind the chuck.
