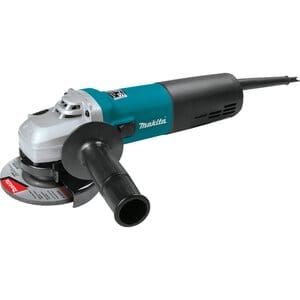

9565CV 125mm 1400W variable speed angle grinder

The 9565CV is a variable speed corded angle grinder manufactured by Makita.

The machine is powered by a 1400 watt brushed electric motor. Depending on the region it is sold in the cord has an appropriate power plug and voltage rating for 120 and 230 volt outlets.

Exterior

The body is barrel shaped with black rubber on the back and ventilation inlets on the sides. The RPM can be set with a speed selection dial on the back under the power cord.

The middle part is Makita teal colored plastic. The front of the machine is the gear housing and is made out of aluminium. It has ventilation outlets on top and a black spindle lock button.

The gear housing can be unscrewed from the body and attached in four different positions.

The RPM is electronically controlled so that it remains constant even when more resistance is encountered by pushing the disc on the work piece.

On the bottom of the gear housing is a 14 mm spindle or 5/8" in countries where that is more common. The disc is held in place with a lock nut for which a wrench is needed to loosen and tighten it.

Safety

Inside the gear housing is a mechanical clutch that Makita calls SJS (Super Joint System) that disconnects the gears when too much force is applied to protect the motor and gears from damage.

The machine also has a soft start feature that prevents kickback when turning it on.

Variants

• 9565CVR with restart protection
