9565P 125mm 1100W paddle switch angle grinder

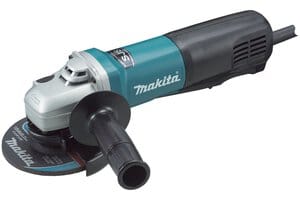

The 9565P is a corded angle grinder with paddle switch manufactured by Makita.

The machine is powered by a 1100 watt brushed electric motor.

Availability

In 2021 the machine was listed on Makita New Zealand's website but not on Makita's USA website.

Exterior

The body is barrel shaped with black rubber on the back and ventilation inlets on the sides. The RPM can be set with a speed selection dial on the back under the power cord.

On the bottom side there is a large black paddle switch which need to be pressed in to activate the machine.

The middle part is Makita teal colored plastic. The front of the machine is the gear housing and is made out of aluminium. It has ventilation outlets on top and a black spindle lock button.

At the very front there is an indented arrow that indicates the turning direction. There are threaded holes on each side to attach the side handle.

Inside the gear housing is a mechanical clutch that Makita calls SJS (Super Joint System) that disconnects the gears when too much force is applied to protect the motor and gears from damage.

On the bottom of the gear housing is a 14 mm spindle. The disc is held in place with a lock nut for which a wrench is needed to loosen and tighten it.

Variants

• 9565PC more powerful with constant speed
