EY46A2-LJ2G cordless angle grinder kit

18V 14.4V Angle grinder Cordless Grinding

The EY45A2-LJ2G a cordless angle grinder kit manufactured by Panasonic.

The kit is sometime also referred to as "EY45A2LJ2G" without the dash in the name. "LJ2G" at the end of the model name indicates it is sold with two batteries and a charger.

The machine has a brushless electric motor that is powered by a 18 or 14.4 volt battery.

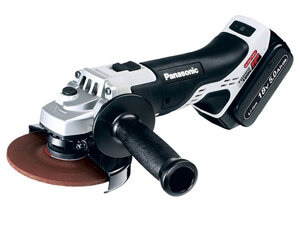

The stated weight of 2.35 kilo is of the tool with one 18V 5.0 Ah battery inserted. The picture shows the machine with one battery.

Exterior

The tool has a light gray plastic housing with large parts of the handle covered in black rubber.

The battery attaches to the back at a 45º angle and slides in from the top. In front of the battery are ventilation slits that suck in air.

On top of the body, towards the front is a black slide switch. The position on top allows the machine to be activated with the thumb of the left or right hand.

On the front of the machine is a gray gearbox that is attached to the motor housing with four screws, and can be removed and rotated in 90º increments.

On top are some holes that act as ventilation exhaust holes. There are two threaded holes to screw in an auxiliary handle on the left and right side.

On the top side is a red spindle lock button and an arrow that indicates the turning direction.

The position of the gray wheel guard underneath can be adjusted with a screwdriver.

Included accessories

  • Two EY9L54B 18V batteries
  • EY9PM13E battery charger
  • Plastic box
