PAP 20 A2 3.0 Ah battery

The PAP 20 A2 is Lithium Ion battery pack for the X20V Team battery system from Parkside.

The battery has a nominal voltage of 18 volts with a maximum of 20 volts when fully charged. It has a capacity of 3.0 Ah.

The battery can be charged in 120 minutes with a regular charger or 60 minutes with a fast charger.

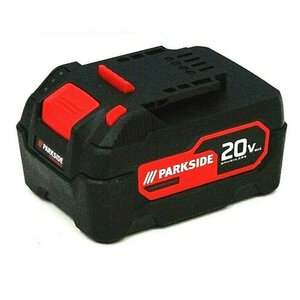

Exterior

The battery pack is box shaped and contains ten cylindrical 18650 Lithium Ion cells with a capacity of 1.5 Ah each. It looks identical to the PAP 20 A3 which contains higher 2.0 Ah capacity cells.

The battery pack has a black plastic casing with recessed electrical contacts on top. Along all sides there is a horizontal red line with the text "Parkside X20V Team" on the left and right side.

The battery is designed to slide into the bottom of a power tool from the front to back.

At the front/top is a red push button that releases a latch to release the battery from the tool body.

On the left side is a battery charge indicator with a red, yellow and green LED and a membrane button to activate it.
